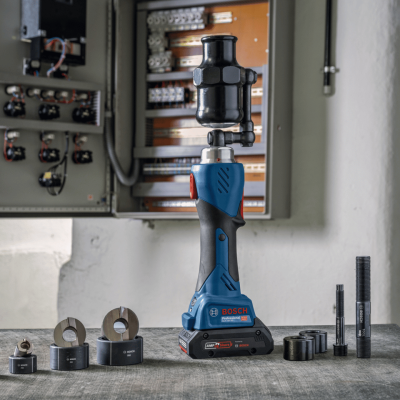

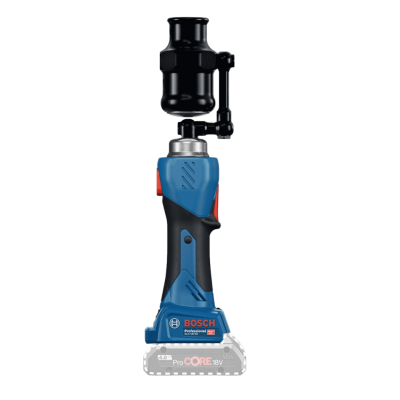

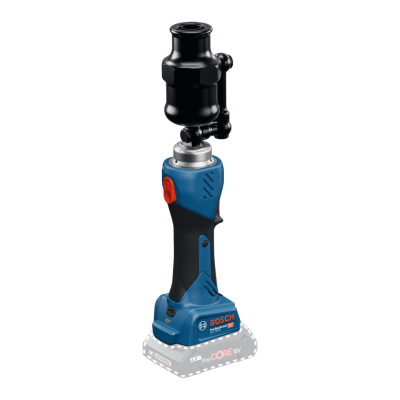

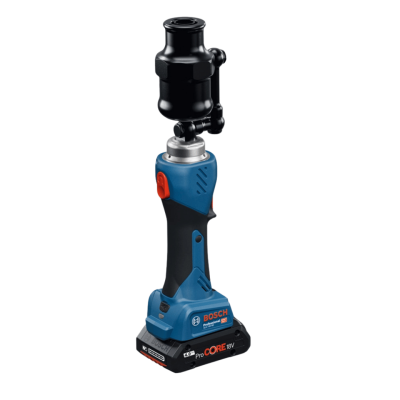

BOSCH GLH 18V-60 18V Hydraulic Punching Tool - Body & Case

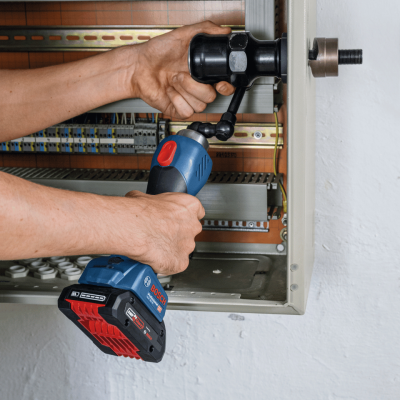

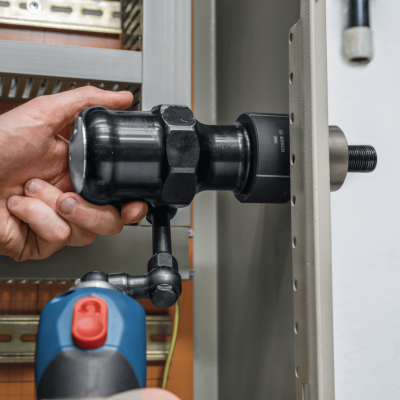

The GLH 18V-60 punches holes in steel sheets up to 3 mm thick and in stainless-steel sheets up to 2.5 mm. Bosch offers accessories from M16 - M40 and PG9 - PG36 all of which are suitable for both steel and stainless steel. The USB connection and read-out software (free and available to download below) lets you easily monitor the tools punching history, error messages and maintenance.

Positioning

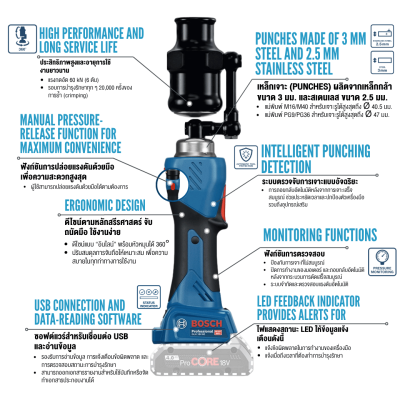

• 18V Hydraulic Punching Tool: Outstanding Maintenance Interval and Accessories
• Strong, reliable hydraulic punching resulting in clean and burr-free cuts

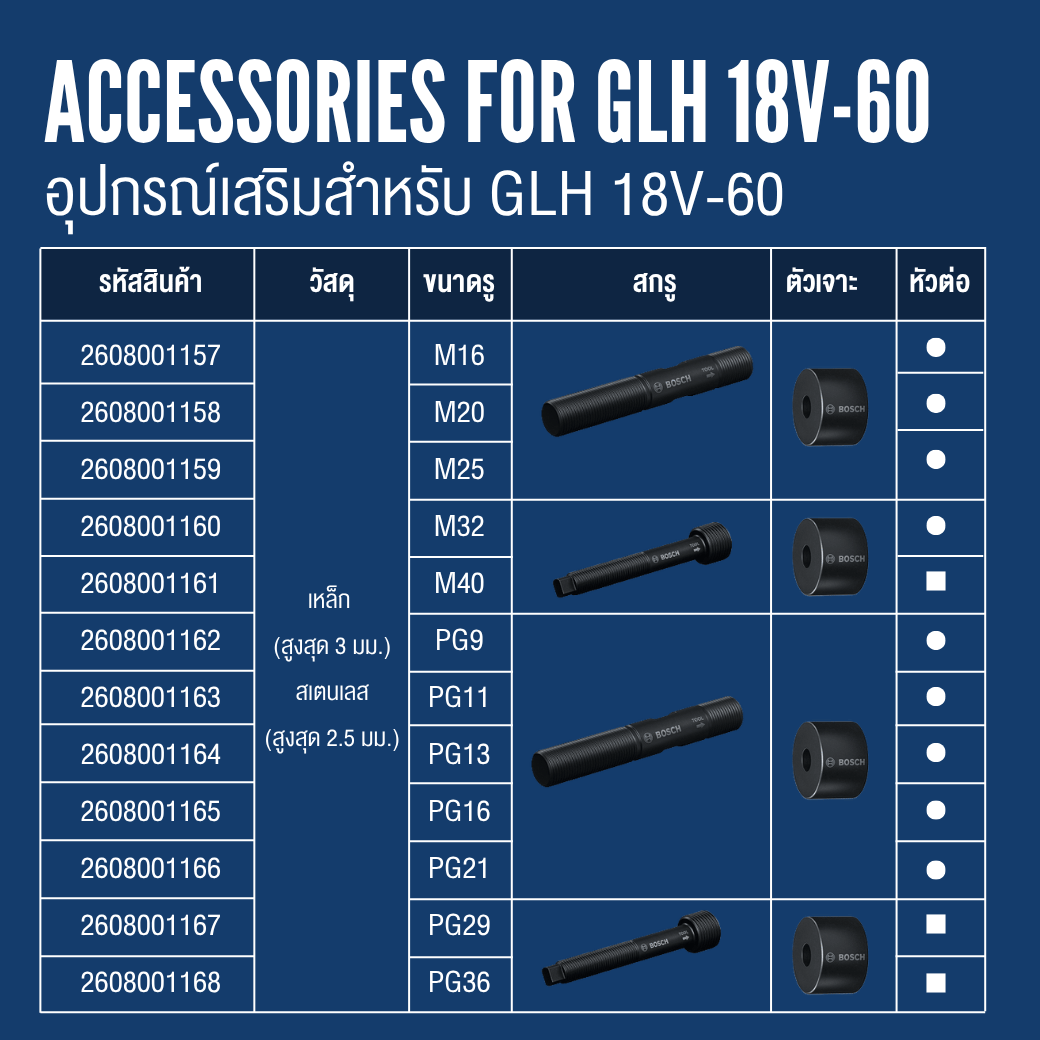

• Wide range of Bosch accessories in sizes M16-M40 and PG9-PG36 suitable for both steel and stainless steel available
• High performance with reliable output force of 60kN maximum, thanks to electronic pressure monitoring

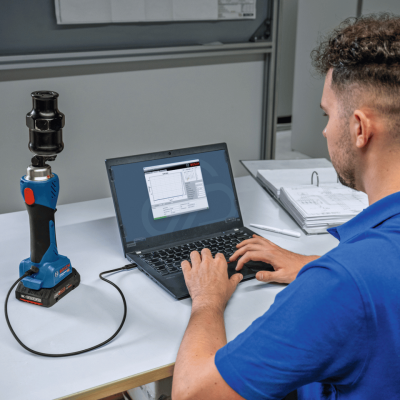

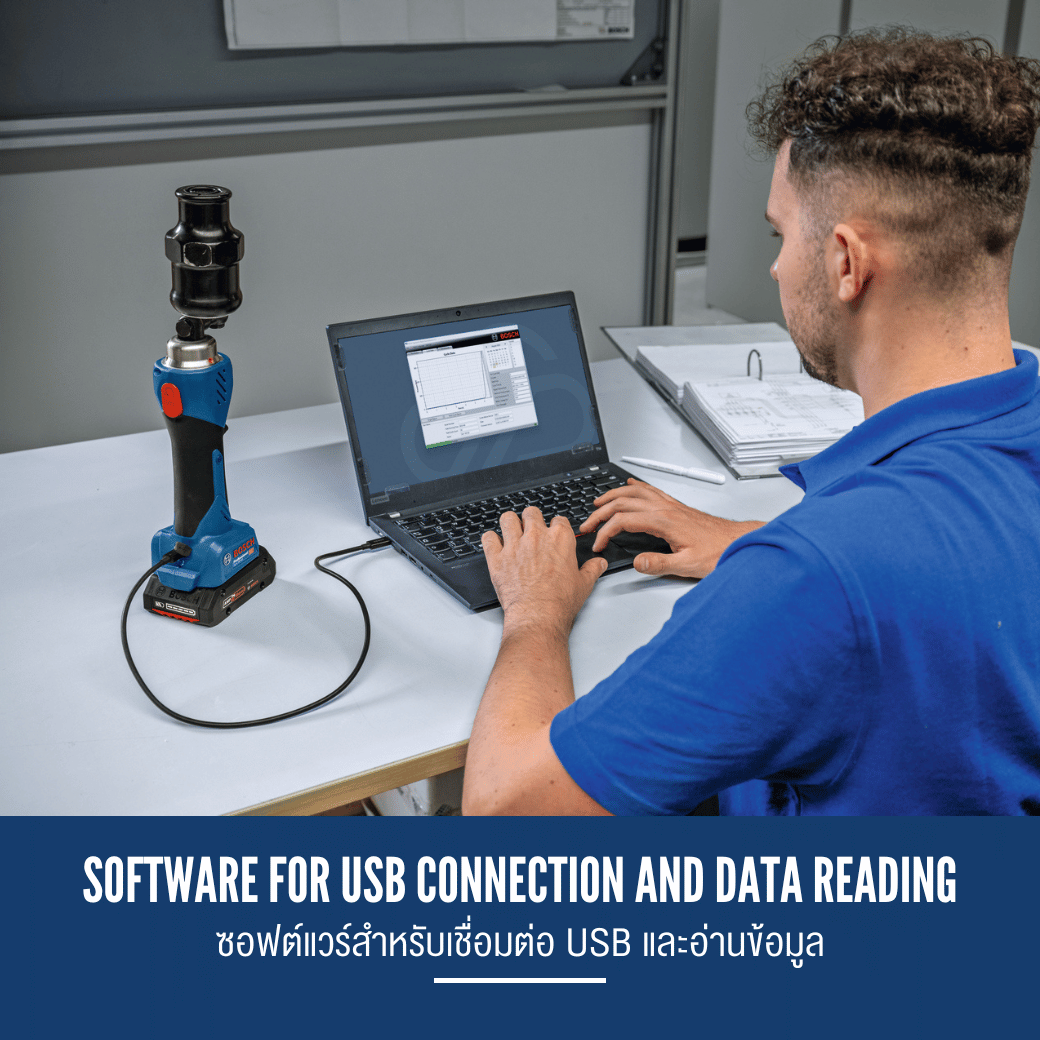

• Convenient overview of tool history, important parameters and maintenance cycles through USB connection and readout software

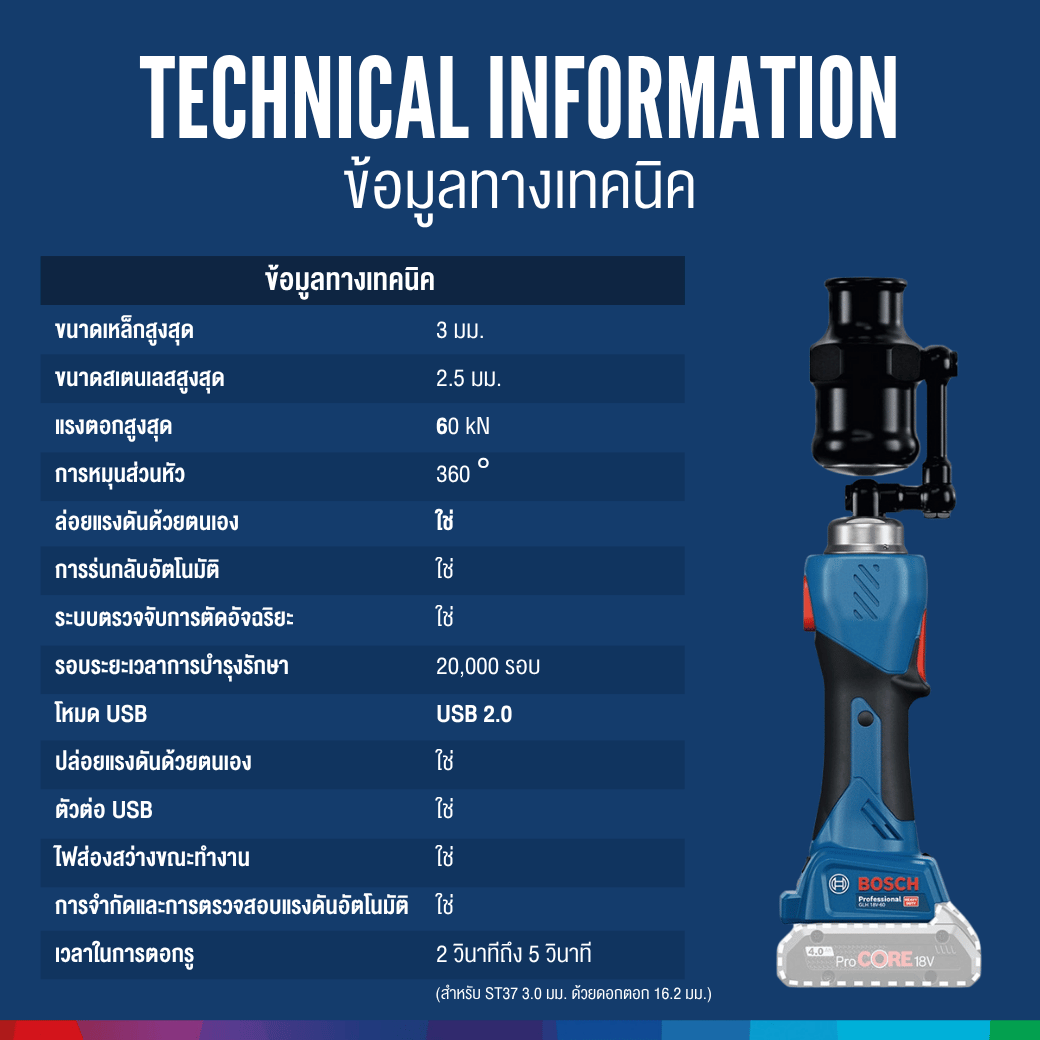

Technical Information

• Capacity stainless steel max : 2.5 mm

• Capacity steel max : 3 mm

• Head rotation : 360 °

• Punching force max : 60 kN

• Automatic retraction :  Yes

• Intelligent punching detection : Yes

• Maintenance interval : 20.000 cycles

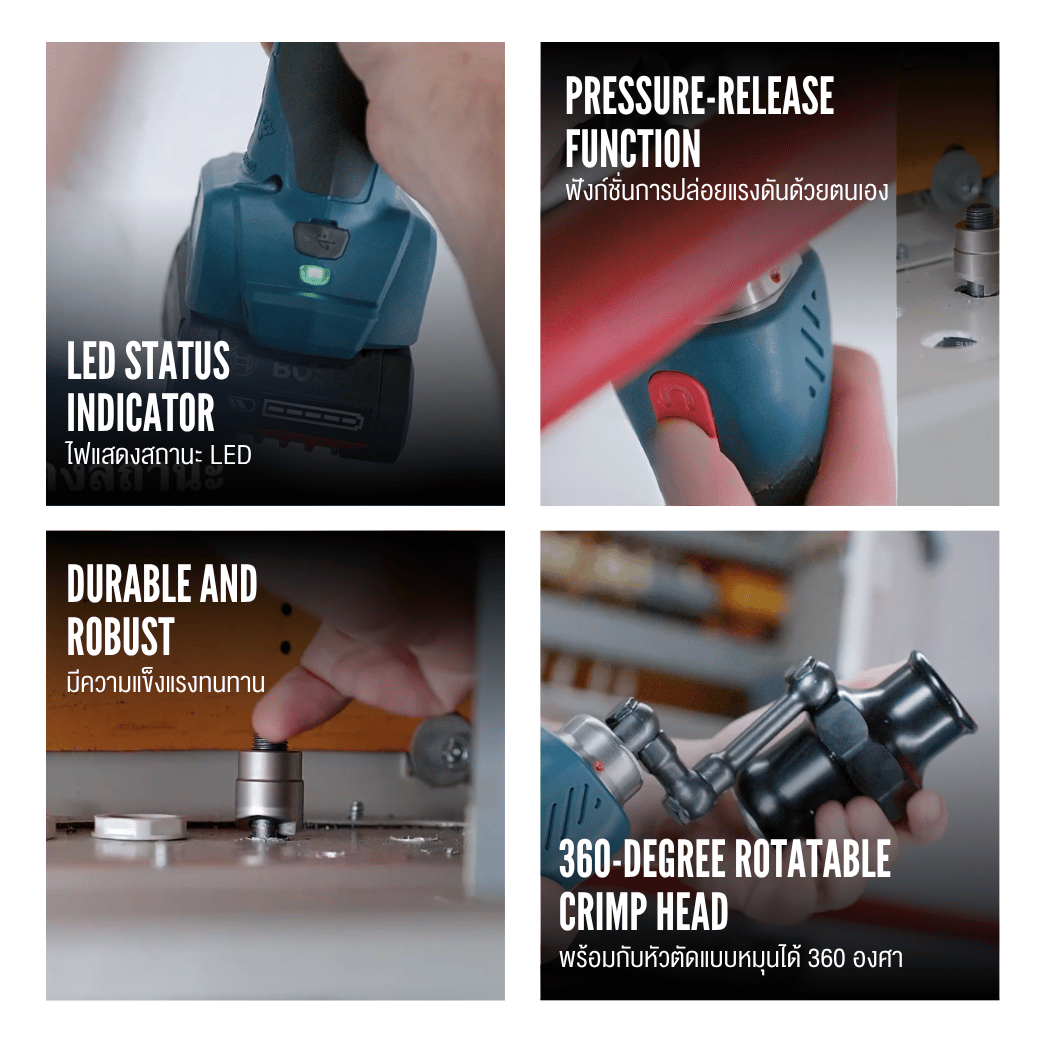

• Manual pressure release : Yes

• USB connector : Yes
• Manual retraction stop : Yes

• Read-Out Functionality : Yes

• Work light : Yes

• Automatic pressure limitation and monitoring : Yes

• USB mode : USB 2.0

• Punching time : 2 s to 5 s (for ST37 3.0mm with 16,2mm Punch)

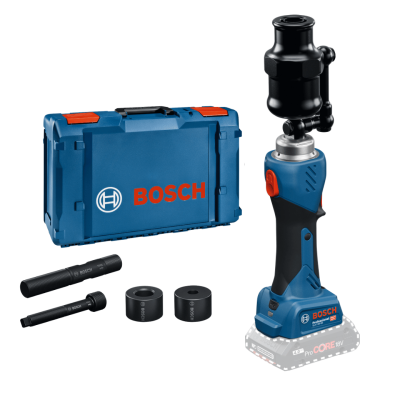

อุปกรณ์ในเซ็ต

• 1 x draw stud 11.1 x 19 mm. (1607000FL9)

• 1 x draw stud 19 x 125 mm. (1607000FM0)

• 1 x spacer 11.1 mm. (1607000FV9)

• 1 x spacer 19 mm. (1607000FM1)

• XL-BOXX (16054381JG)
