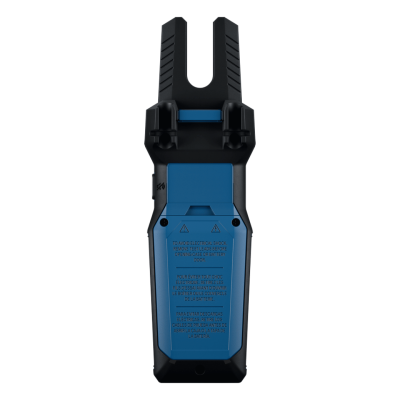

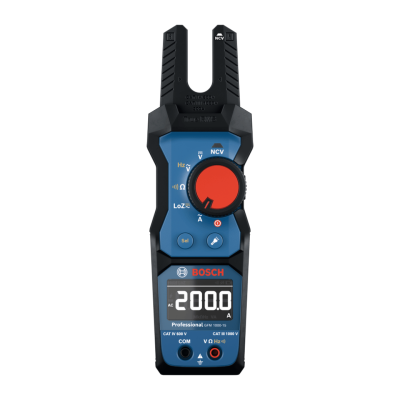

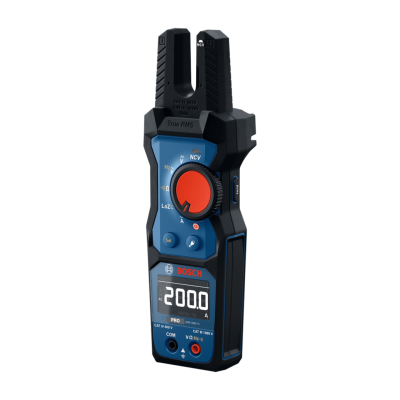

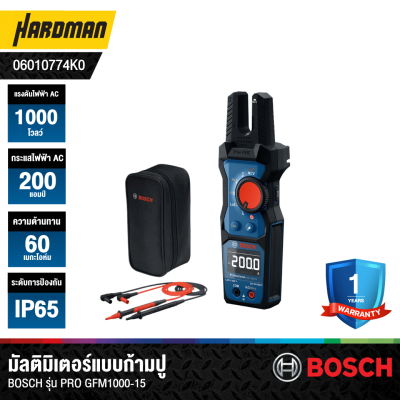

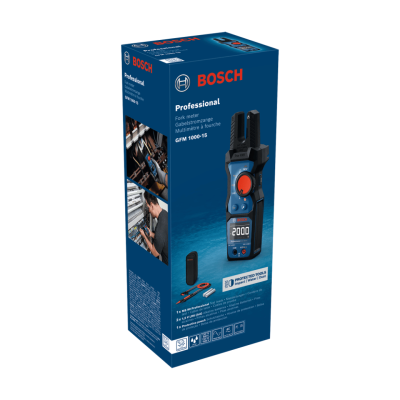

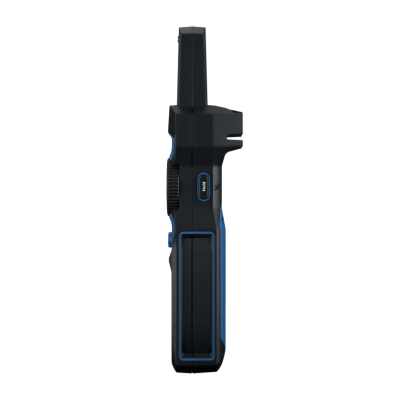

BOSCH PRO GFM1000-15 Fork meter

The GFM 1000-15 Professional Fork meter is designed for professionals who need quick and efficient AC current and AC/DC voltage checks. With its open clamp design, you can measure current up to 200 A AC without test leads to save time and effort. This all-in-one tool measures current AC, voltage AC/DC up to 1000 V, continuity, resistance, and has LoZ V AC/DC integrated. With IP54 protection, its robust build ensures resistance to accidental drops from up to 2m and harsh conditions. Also, a comfortable grip reduces fatigue during extended use - making it a must have for electricians and HVAC technicians.

Features

• Enhanced durability with IP54 protection and a comfortable grip for tough jobsites

• Measures up to 200 A AC with an open jaw design for faster work

• Compact design with a compatible magnet hanger solution (MH 1 Professional) for work in tight spaces

Technical data

• AC voltage : 1,000 V

• AC voltage resolution : 1 V

• AC voltage accuracy : ± 1.5 % + 5

• AC current : 200 A

• AC current resolution : 0.1 A

• AC current accuracy : ± 3.0% + 3

• DC voltage : 1,000 V

• DC voltage resolution : 1 V

• DC voltage accuracy : ± 1.0 % + 2

• Resistance : 60 MΩ

• Resistance resolution : 0.01 MOhm

• Resistance accuracy : ± 2.0 % + 5

• Continuity : Yes

• Continuity resolution : 0.1 Ohm

• Continuity accuracy : ± 1.0 % + 5

• Frequency resolution : 0.01 kHz

• Frequency accuracy : ± 0.1 % + 2

• Low input impedance (LoZ) : 1,000 V

• IP-Protection : IP54

• True RMS : Yes

• Safety class : CAT IV 600 V / CAT III 1000 V

• Display type : LCD Inverted

• Non-Contact-Voltage (NCV) : Yes

• Torch light : Yes

• Acoustic feedback : Yes

• Measuring range for frequency : 10 Hz to 50 kHz

• Continuity range : 0 Ω

• Cable Break Detection : No
