MILWAUKEE ISHL-LED Intrinsically Safe LED Headlamp

MILWAUKEE ISHL-LED Intrinsically Safe LED Headlamp
The MILWAUKEE ISHL-LED Intrinsically Safe LED Headlamp is designed for use in hazardous environments where flammable gases, vapors, and mists may be present. This intrinsically safe headlamp is certified for use in Zone 0 hazardous locations, helping reduce the risk of sparks that could potentially cause ignition.

It is ideal for use in the oil and gas, petrochemical, rescue, firefighting, and other hazardous industries where flammable atmospheres may occur.

Featuring TRUEVIEW™ High Definition Output technology, the headlamp delivers up to 310 lumens with a maximum beam distance of 100 meters. It offers both Spot and Flood beam options, allowing users to choose between long-distance illumination and wider-area lighting. With 5 lighting modes, users can adjust brightness and runtime according to the requirements of each application.

The compact and lightweight design features a pivoting light head with 7 adjustable positions, allowing users to direct the beam exactly where needed. The headlamp includes a rubber strap for mounting to hard hats and a nylon strap for direct head mounting. It also comes with DUAL LOCK™ adhesive mounting for attaching the light to a hard hat without using straps, as well as 4 universal hard-hat clips for versatile installation.

Powered by 3 AAA batteries, the headlamp provides up to 40 hours of runtime in Flood Low mode. It is rated IP64 for protection against dust and water and can withstand drops from up to 2 meters, making it suitable for demanding work environments where durability and safety are essential.

Features of the MILWAUKEE ISHL-LED Intrinsically Safe LED Headlamp

• Intrinsically Safe headlamp designed for use in hazardous environments where sparks and ignition hazards may be present

• ATEX Zone 0 certified for hazardous locations

• Delivers up to 310 lumens with TRUEVIEW™ High Definition Output

• Maximum beam distance of 100 meters in Spot mode

• Features 5 lighting modes: Hybrid, Flood High, Spot High, Flood Medium, and Flood Low

• Adjustable brightness and runtime to suit different applications

• Light head adjusts to 7 positions for precise beam direction

• Hands-free operation keeps both hands available for work

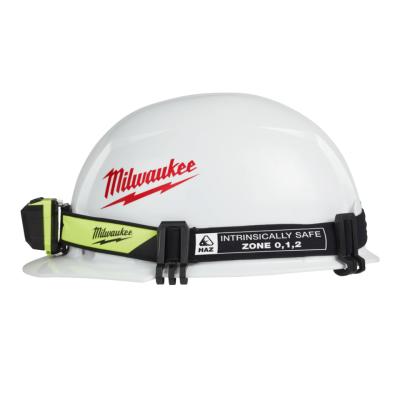

• Includes a rubber strap for mounting to hard hats

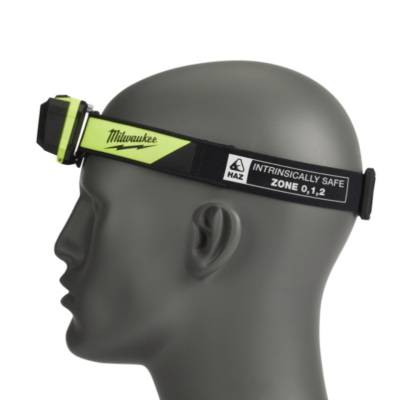

• Includes a nylon strap for direct head mounting

• Includes DUAL LOCK™ adhesive mounting for attaching the light to a hard hat without straps

• Includes 4 universal hard-hat clips

• IP64 rated for dust and water protection

• Withstands drops from up to 2 meters

• Powered by 3 AAA batteries

• Ideal for oil and gas, petrochemical, rescue, firefighting, and hazardous environments containing flammable gases or vapors

Technical Specifications

• Model: ISHL-LED

• Type: Intrinsically Safe LED Headlamp

• Voltage: 4.5V

• Power Source: 3 × AAA batteries

• Maximum Output: 310 lumens

• Maximum Beam Distance: 100 meters

• Number of Modes: 5

• Hybrid: 310 lumens / up to 4 hours runtime

• Flood High: 235 lumens / up to 6 hours runtime

• Spot High: 155 lumens / up to 8 hours runtime

• Flood Medium: 155 lumens / up to 10 hours runtime

• Flood Low: 25 lumens / up to 40 hours runtime

• Ingress Protection: IP64

• Safety Certification: Intrinsically Safe / ATEX Zone 0

• Light Head Adjustment: 7 positions

• Weight: Approximately 0.085–0.10 kg

Package Contents

1 × MILWAUKEE ISHL-LED Intrinsically Safe LED Headlamp
1 × Rubber hard-hat mounting strap
1 × Nylon head strap
1 × DUAL LOCK™ adhesive mounting piece
4 × Universal hard-hat clips
1 × Hex key
3 × AAA batteries
