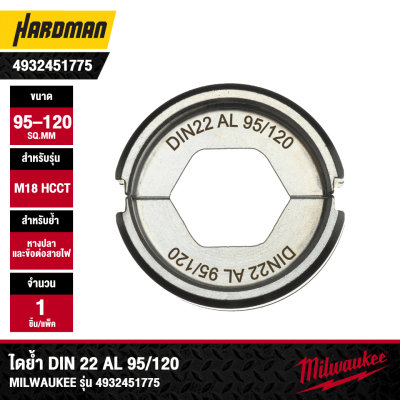

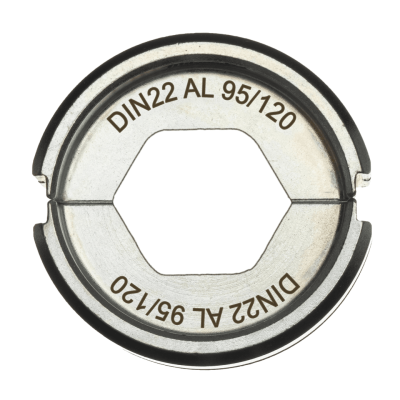

MILWAUKEE DIN 22 AL 95/120 Crimping Die – 4932451775

The MILWAUKEE DIN 22 AL 95/120 Crimping Die, model 4932451775, is designed for use with the M18™ HCCT Crimping Tool for crimping aluminum cable lugs and connectors according to DIN standards. It supports cable sizes of 95 and 120 mm², providing secure and precise crimping performance for electrical systems and cable installation applications.

Features

• Specifically designed for the M18™ HCCT Crimping Tool

• Suitable for crimping aluminum cable lugs and connectors

• Supports cable sizes of 95 and 120 mm²

• Manufactured to meet standards for aluminum cable lugs and connectors

• Complies with DIN 46329, DIN 46267 Part 1 & Part 2, and DIN EN 50182

• Provides precise crimping performance suitable for the cable size

• Hex crimping die designed for use with the M18™ HCCT crimping system

Technical Specifications

• Model : 4932451775

• Type : Crimping Die

• Die Model : DIN 22 AL 95/120

• Material Type : Aluminum

• Compatible Cable Size : 95 and 120 mm²

• Terminal/Connector Type : Aluminum Compression Cable Lugs and Connectors

• Standards : DIN 46329 / DIN 46267 Part 1 & Part 2 / DIN EN 50182

• Crimping Profile : Hex

• Compatible Tool : M18™ HCCT

• Quantity : 1 piece
