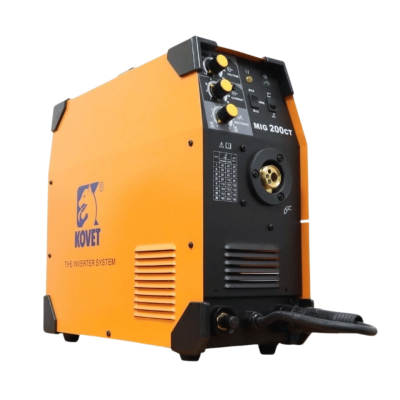

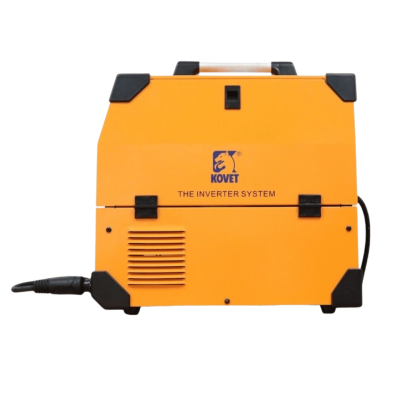

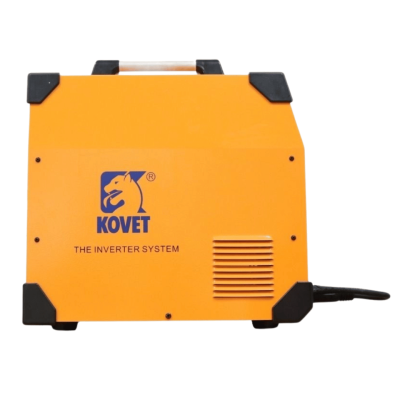

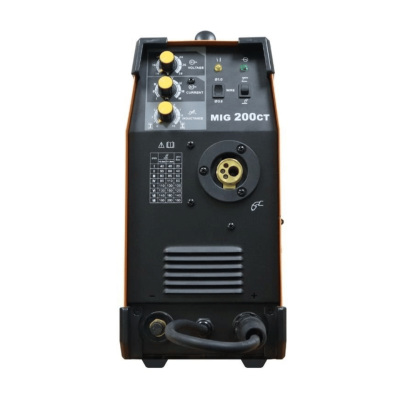

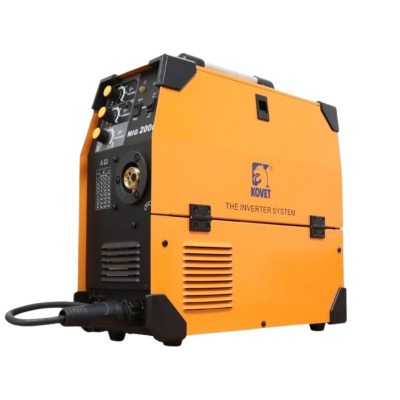

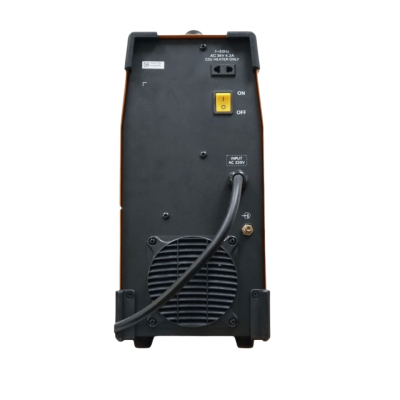

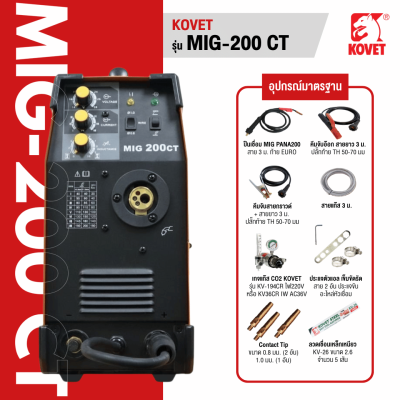

Inverter DC MIG (Stick) Welding Machine KOVET #MIG-200CT

Inverter DC MIG (Stick) Welding Machine KOVET #MIG-200CT

• Top welding performance for light industrial.

• IGBT technology, the core adopts advanced IGBT inverter device.

• Infinite Voltage Control with optimized starting performance.

• Inductance Control for arc stability and spatter control.

• Digital Meters Voltage and Amperage: Preview and Hold capability.

• Quick Change Polarity Simple quick polarity change (no tools required) from the front of the power source.

• Thermal overload protection helps prevent machine damage.

• Energy Saving, more efficient compared with the traditional machine.

More Information

• Brands : KOVET

• Rate Primary Voltage : AC220V (1 phase), ±15%, 50/60Hz

• Rated Input Capacity (KVA) : 8

• Maximum Input Current (A) : MIG : 36.5 || MMA : 32

• Rated input current (A) : MIG : 18.3 || MMA : 17.5

• Output Current Range (A) : MIG : 40-200 || MMA : 20-160

• Output Voltage (V) : MIG : 16-24 || MMA : 20.8-26.4

• Max No-Load voltage (V) : MIG : 59 || MMA : 59

• Rate duty cycle at 30% (10min) : MIG : 200A 24V || MMA : 160A 25.4V

• Rate duty cycle at 60% (10min) : MIG : 160A 22V || MMA : 130A 25.2V

• Rate duty cycle at 100% (10min) : MIG : 130A 20.5V || MMA : 100A 24V

• Wire Feeder System : Internal

• Wire Feed Speed (m/min) : 1.2 - 11.5

• Efficiency (%) : 80

• Power Factor : 0.73

• Insulation grade : F

• Protection Class : IP21

• Electrode/ Wire/ Rod diameter (mm) : 0.8 / 1.0

• Weight (kg) : 14

• Dimension (LxWxH) (mm) : 466.5 x 203 x 476

• Cable Length (m.) : 3
