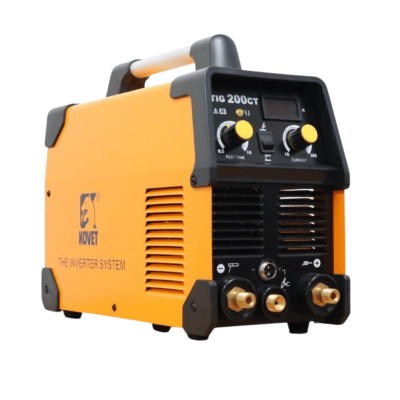

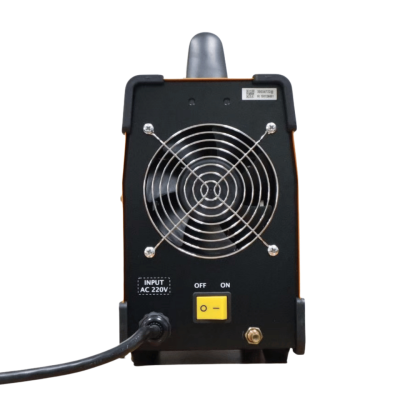

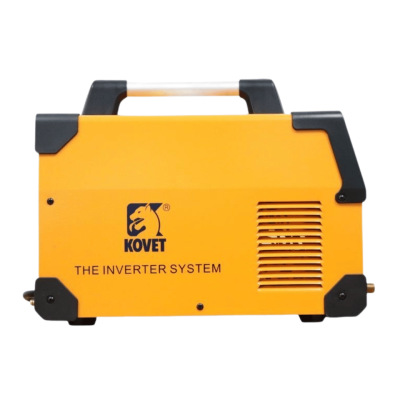

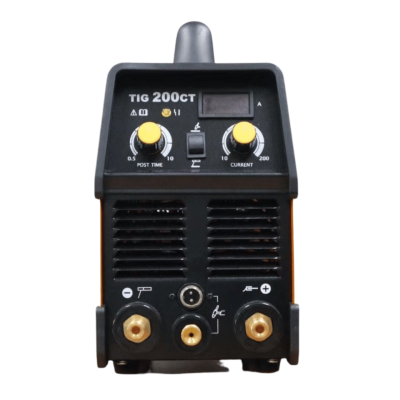

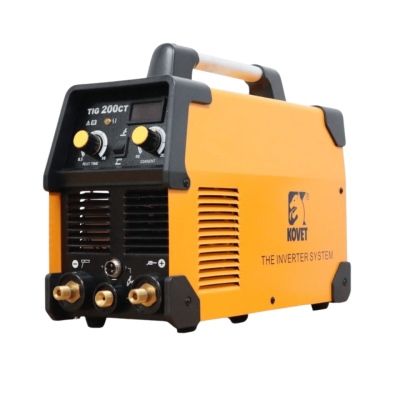

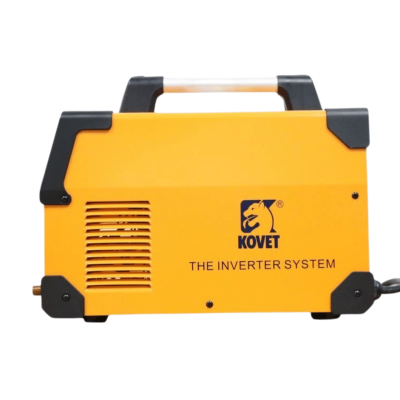

Inverter DC TIG Welding Machine #TIG-200CT

Inverter DC TIG Welding Machine #TIG-200CT

• The KOVET inverter DC TIG welding machine employs advanced inverter technology delivers superior TIG performance.

• Un-touch start DC TIG operation allows you to strike the arc easily with high frequency, and makes it easy to establish an arc under a variety of conditions.

• Automatic HOT START boosts the current during starting to make striking an arc easier.

• Integral gas and power connector for simple torch connections and quick changes between TIG and stick welding.

• Wide range input voltage: 220V +/- 15%

• Energy saving, compared with the traditional TIG machine more efficient.

More Information

• Brands : KOVET

• Rate Primary Voltage : AC220V (1 phase), +/-15%, 50/60Hz

• Rated Input Capacity (KVA) : 6.8

• Maximum Input Current (A) : TIG : 26 || MMA : 31.2
• Rated input current (A) : TIG : 20.1 || MMA : 24.2

• Output Current Range (A) : TIG : 10 - 200 || MMA : 10 - 155

• Output Voltage (V) : TIG : 10.4 - 18 || MMA : 20.4 - 26.2

• Max No-Load voltage (V) : TIG : 58 || MMA : 58

• Voltage Reduction Device (V) : TIG : 16.5 || MMA : 16.5

• Rate duty cycle at 60% (10min) : TIG : 200A 18V || MMA : 155A 26.2V

• Rate duty cycle at 100% (10min) : TIG: 165A 16.6V || MMA : 140A 25.6V

• Efficiency (%) : 80
• Power Factor : 0.73

• Insulation grade : F

• Protection Class : IP21S

• Electrode/ Wire/ Rod diameter (mm) : 1.6 - 4.0

• Material thickness (mm) : < 4

• Weight (kg) : 6.5

• Dimension (LxWxH) (mm) : 402 x 160 x 300

• Cable Length (m.) : 3
