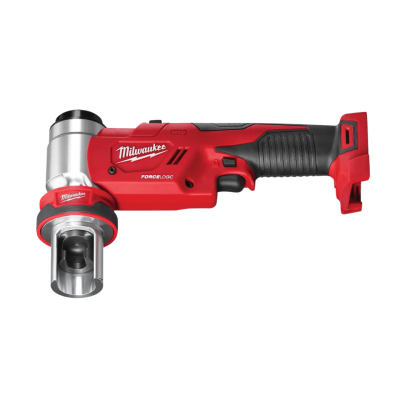

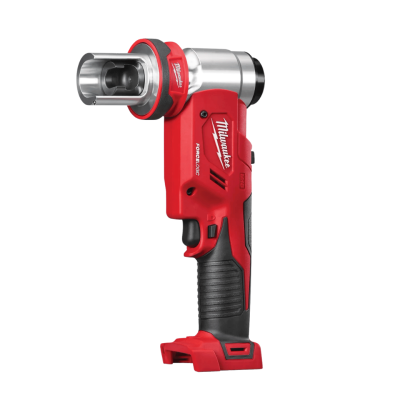

MILWAUKEE M18 HKP-0C18V 6-Ton Hydraulic Knockout Tool (Tool Only)

The M18 FORCE LOGIC™ Hydraulic Knockout Tool revolutionises electrical hole punching with advanced FORCE LOGIC™ technology, making it easier and faster to create holes in metal sheets. Its compact right-angle design provides excellent access in confined spaces, while the Quick Connect Alignment System allows Punch & Die sets to be installed without having to support the weight of the tool while positioning. The tool also features vivid red crosshairs on the dies for precise alignment, helping ensure accurate, clean holes every time.

Features

• 6-Ton Output Force: Delivers up to 6 tons (60 kN) of punching force and can create holes up to 100 mm (4") in diameter.

• FORCE LOGIC™ Technology: Advanced hydraulic technology provides smooth, fast, and precise punching performance.

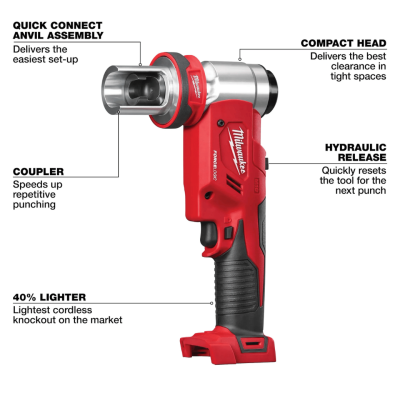

• Quick Connect Alignment System: Enables quick and easy installation of Punch & Die sets without having to hold and support the tool during positioning.

• Compact Right-Angle Design: The compact right-angle head provides excellent manoeuvrability and access inside control cabinets and other confined spaces.

• EXACT™ Punches & Dies: High-quality Punch & Die sets feature vivid red crosshairs, making hole alignment quick, easy, and highly accurate.

• Optimal Slug Removal: Specially designed punch teeth and slug ejection openings make it easier to remove metal slugs after punching.

• Versatile Compatibility: Compatible with commonly available standard Punch & Die sets.

• Fuel Gauge & LED Light: Built-in battery fuel gauge and LED work light provide convenient battery status monitoring and improved visibility during operation.

Technical Specifications

• Voltage: 18V (M18™ System)

• Maximum Punching Force: 6 tons (6.7 tons / 60 kN)

• Maximum Material Capacity: 3.0 mm mild steel / 2.5 mm stainless steel

• Maximum Hole Diameter: 100 mm (4")

• Motor: High-performance brushed motor (or Brushless, depending on the specific version)

• Safety System: REDLINK™ Intelligence helps protect the tool against overload.
