OSUKA 20V Cordless Impact Drill, Model OCHD804

The OSUKA OCHD804 20V cordless impact drill features a brushless motor delivering up to 60 Nm of torque. It offers three operating modes: screwdriving, drilling, and hammer drilling, making it suitable for installation work, furniture assembly, and drilling into wood, steel, and masonry. Its compact, lightweight design provides excellent maneuverability in confined spaces. The drill is equipped with a metal chuck featuring a Click Lock system for secure bit retention, along with a base-mounted LED light to illuminate the work area. Ideal for professional tradespeople and general users seeking a versatile tool for a wide range of applications.

Features of the OSUKA 20V Cordless Impact Drill OCHD804

• An improved version of the best-selling model, redesigned to be smaller, lighter, and more powerful than its size suggests.

• Shorter body design for improved access to tight spaces.

• All-metal gear housing and gears provide durability and long service life.

• Metal chuck with Click Lock system ensures a secure grip, stable drilling, and reliable bit retention.

• Shadow-Free LED lighting, positioned at the base of the tool, illuminates the work area while minimizing shadows.

• Special TAP MODE helps guide drilling and screwdriving through short rotational pulses.

• Full-metal construction, including the gear housing, gear assembly, and drill chuck, is designed to withstand high torque and maintain chuck stability.

• Sensitive variable-speed trigger provides smooth operation and precise speed control.

Technical Data

• Chuck capacity: 0.8–10 mm

• Motor type: Brushless

• Maximum torque: 60 Nm

• No-load speed: Gear 1: 0–530 rpm : Gear 2: 0–2,100 rpm

• Impact rate: Gear 1: 0–7,950 bpm : Gear 2: 0–31,500 bpm

• Operating modes: 3 modes (Screwdriving, Drilling, Hammer Drilling)

• Torque settings: 18+3

• Drilling capacity: Wood: 38 mm : Steel: 13 mm : Masonry: 10 mm

• Voltage: 20V

• Weight without battery: 0.96 kg

• Weight with battery: 1.34 kg


Package Contents

• OCHD804-N (Bare Tool Only)

  • 1 × Belt hook

  • 1 × Wrist strap

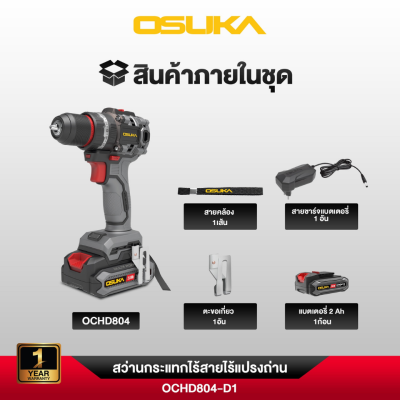

• OCHD804-D1 (With 1 × 2.0Ah Battery)

  • 1 × 2.0Ah battery

  • 1 × Battery charging cable

  • 1 × Belt hook

  • 1 × Wrist strap

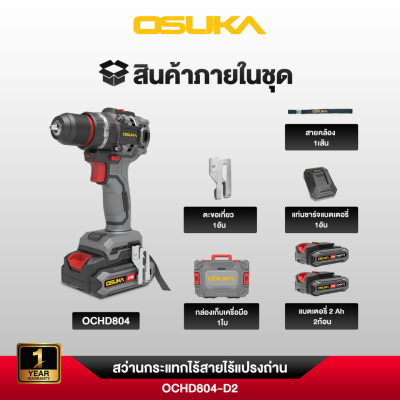

• OCHD804-D2 (With 2 × 2.0Ah Batteries and Carrying Case)

  • 2 × 2.0Ah batteries

  • 1 × Battery charger

  • 1 × Belt hook

  • 1 × Wrist strap

  • 1 × Tool storage case
